The Challenge: Beyond Standard Distribution
In a recent large-scale food manufacturing project in Southeast Asia, our team was faced with three critical environmental and operational hurdles:
Extreme Humidity: Operating environments with over 90% humidity, compounded by daily high-pressure wash-downs and chemical sanitization.
High-Stakes Continuity: The facility’s industrial retorts (sterilizers) process tens of thousands of dollars in product per batch. A single voltage dip can lead to incomplete sterilization, forcing the disposal of the entire batch.
Unreliable Local Grids: Frequent "brownouts" and spikes that threaten sensitive PLC-based control systems.
Our solution was a custom-engineered 800A Tiered Distribution System—a robust hierarchy designed for resilience, isolation, and rapid recovery.
Engineering Deep-Dive: Built for the Factory Floor
1. The 800A Main Distribution Center (MDC): Your Power Anchor
The main panel (XL-21 model) serves as the facility’s primary defense line. We utilized reinforced cold-rolled steel treated with industrial-grade anti-corrosion coating.

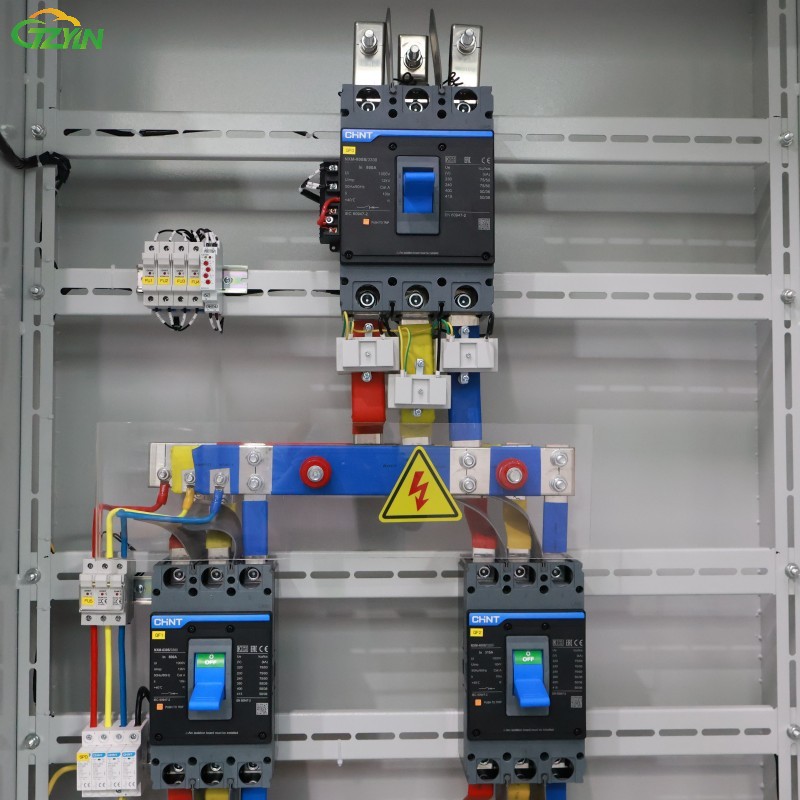

The Heavy Lifter: At its core sits the CHINT NXM-800S MCCB. We specified this unit for its 50kA breaking capacity, ensuring that even major short circuits are quenched in milliseconds, protecting the facility's upstream infrastructure.
Voltage Safeguards: We integrated Type-I Surge Protective Devices (SPD) and specialized under-voltage monitoring relays. If the grid fluctuates outside safe parameters, the system automatically sheds non-essential loads to prioritize the central cooling and sterilization systems.
2. T2 Copper Busbar Architecture: The Invisible Quality
Efficiency is won or lost in the quality of the copper. We utilize 99.9% pure T2 Copper Busbars.
Thermal Management: Every busbar is precision-sized to ensure that temperature rise remains well below the 65K limit required by IEC standards, even at 100% load.
Safety Identification: Full-length heat-shrink insulation (Red, Yellow, Blue, Green) ensures that any future maintenance by local electricians is intuitive and error-free, even years after installation.
3. 150A Sub-Distribution Units (SDU): Precision Fault Isolation
The SDUs are where production continuity is managed.

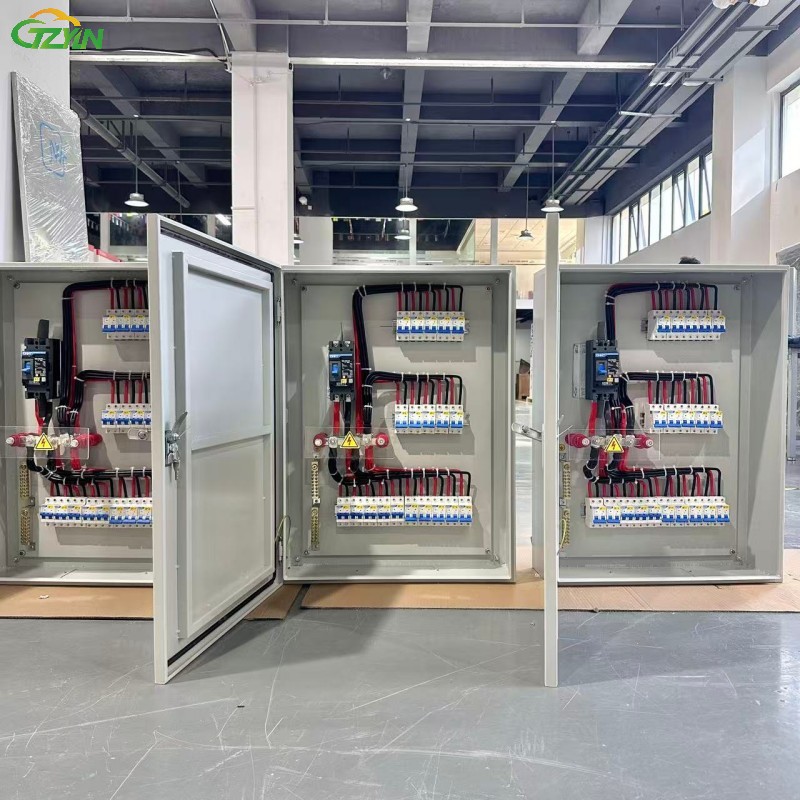

The "One-Machine, One-Breaker" Protocol: By utilizing CHINT NXB-63 series miniature breakers for every individual filler, capper, or conveyor, we achieved total fault isolation. If a motor burns out on labeling line #2, lines #1 and #3 continue to run at full capacity.
Ergonomic Wall-Mounting: These units feature a compact footprint with bottom-entry cable seals to prevent moisture ingress, essential for maintaining hygiene standards.
Quality Control: Built for Export, Ready to Run
To ensure these systems were "Plug-and-Play" upon arrival in Manila, Dubai, or Lagos, we implemented a rigorous pre-shipment protocol:
- Logical Labeling: Every control wire is fitted with computer-printed ferrules matching our CAD diagrams exactly. No guesswork for your local installers.
- Torque Verification: Every bolted connection is tightened to spec and marked with anti-loosening "torque paint" for visual inspection during commissioning.
- Live Simulation: Before crating, every panel undergoes a full-load simulation to verify meter accuracy and mechanical breaker cycling.
The Bottom Line: ROI and Compliance
The implementation of this tiered system delivered immediate financial and operational value:
- Maintenance Independence: By using standardized CHINT components, the client can source spare parts locally in any major market (Vietnam, UAE, Nigeria), eliminating the need for expensive international air-freight for basic repairs.
- Loss Prevention: Within the first six months, the system successfully isolated two localized short circuits, preventing total factory blackouts and saving an estimated $55,000 in potential product spoilage.
- Audit Readiness: The professional layout and documentation helped the facility pass ISO22000 and BRC global food safety audits with zero electrical non-compliance findings.
Summary
Power distribution isn't just about "wiring boxes"—it is about understanding the pulse of a production line. Our team doesn't just manufacture hardware; we engineer uptime.
