Custom 35kV Island Solar Grid-Tied Solution | Anti-Corrosion & High Reliability

"This project involves the design and supply of a complete, high-reliability power distribution system for a utility-scale solar plant located on a remote offshore island. Facing extreme environmental challenges, including a high-salinity atmosphere and unstable grid conditions, our objective was to ensure a seamless energy flow from DC generation to 35kV high-voltage grid interconnection while maximizing equipment service life."

رقم الصنف :
GZY-HG
النظام (موك) :
3 units
دفع :
T/T、Paypal
أصل المنتج :
Fujian/Fuzhou
لون :
Carbon steel and stainless steel
ميناء الشحن :
Ningbo,Mawei,Shenzhen
فترة إنتاج :
30 days
ثقل :
customized

التحقيق الآن

مقدمة المنتج

Project Overview

This comprehensive Offshore / Island Power System is a professional-grade turnkey solution engineered for extreme coastal environments. From DC power aggregation to 35kV High-Voltage Metering Switchgear interconnection, our system ensures stable Remote Area Power Supply (RAPS) and efficient energy management.

Our Anti-Corrosion Solar Solutions are specifically designed for Microgrid Interconnection, successfully overcoming technical challenges such as high salt spray, extreme humidity, and the grid fluctuations common in island environments.

Core Components & Technical Details

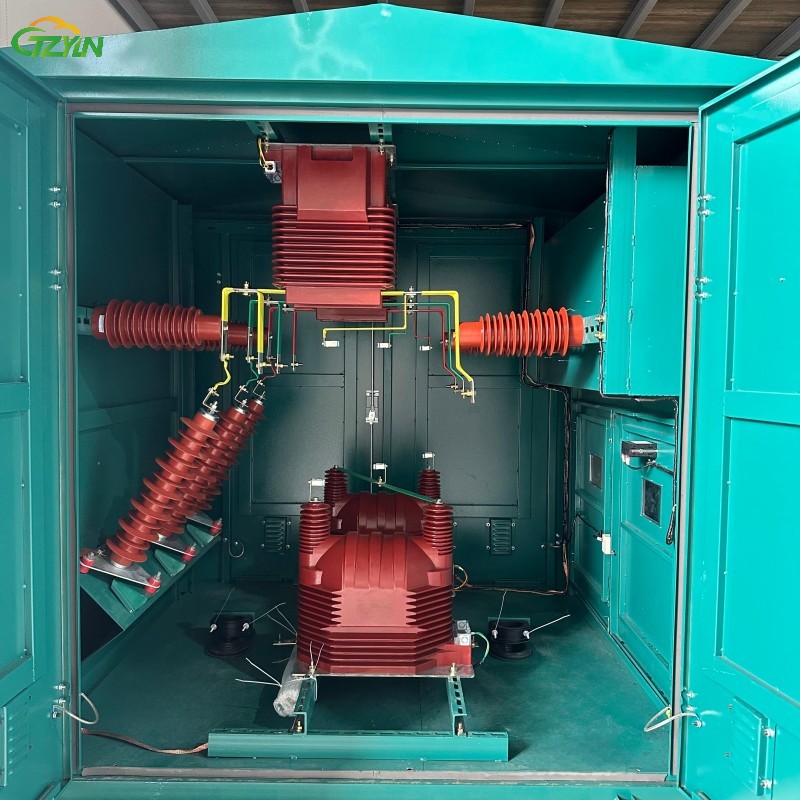

A. 35kV High-Voltage Metering Switchgear (1 Unit)

Working Principle: Utilizes high-precision Voltage Transformers (PT) and Current Transformers (CT) to step down 35kV signals for 0.2s class energy metering. The system captures real-time busbar power data via electromagnetic induction.

Core Function: Acts as the "Revenue Gatekeeper," providing legal-grade data for PPA (Power Purchase Agreement) billing and high-voltage grid monitoring.

Application Scenario: Installed at the grid-tie point of utility-scale solar farms for precise revenue settlement with the utility company.

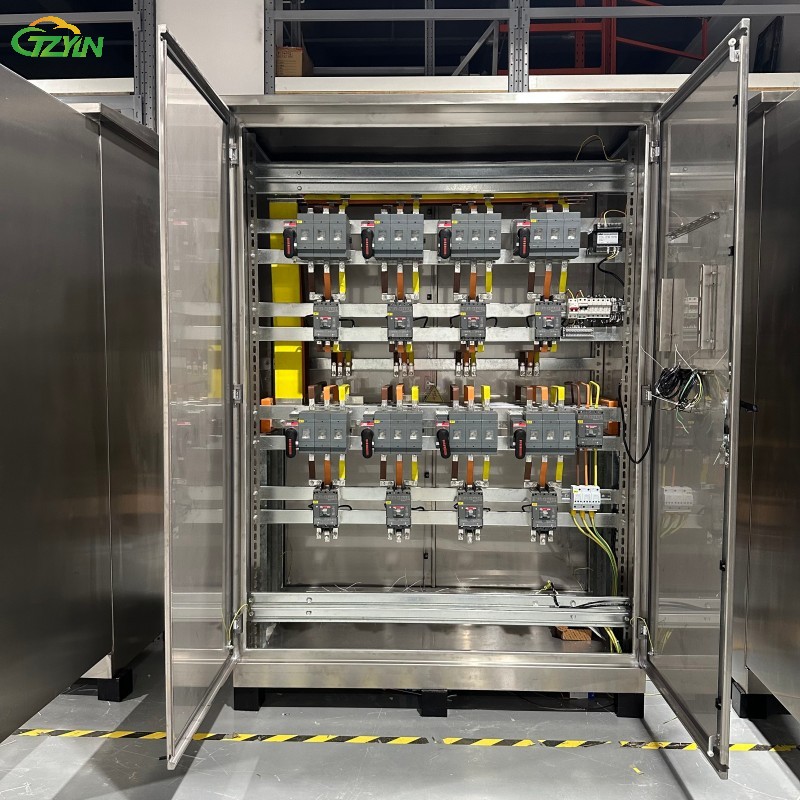

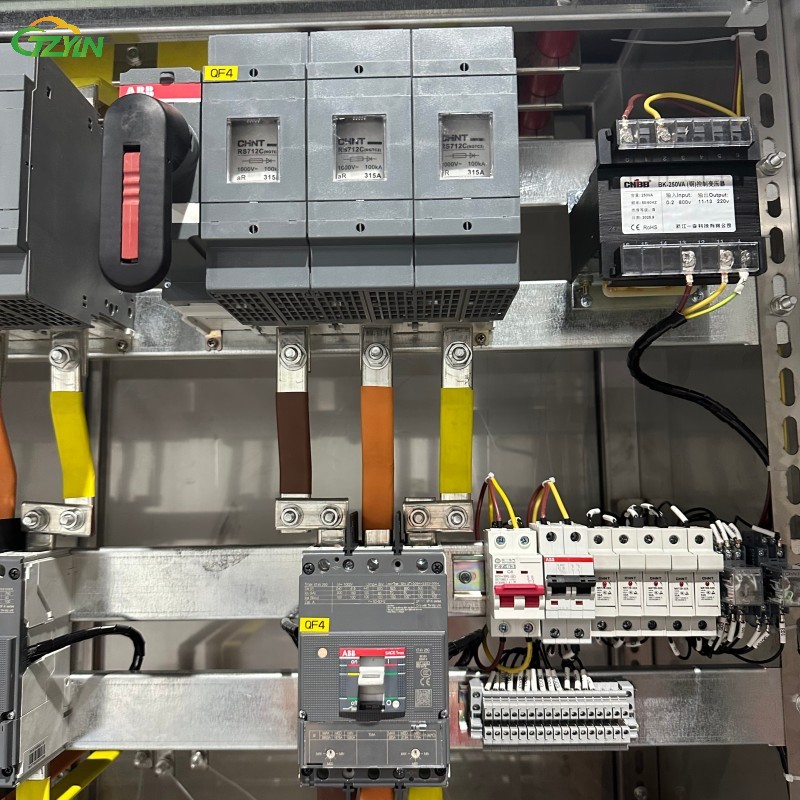

B. Grid-Tied AC Distribution Cabinet (4 Units)

Working Principle: This MCCB Protection Panel monitors grid frequency and voltage in real-time. Integrated with ABB/CHINT industrial breakers, it executes smart grid-syncing or millisecond-level disconnection (Anti-Islanding) during grid outages.

Core Function: Automated grid-tie control, millisecond-level Anti-Islanding Protection, and AC-side overcurrent/short-circuit protection.

Application Scenario: The essential bridge between solar inverters and the main transformer within a Microgrid Interconnection.

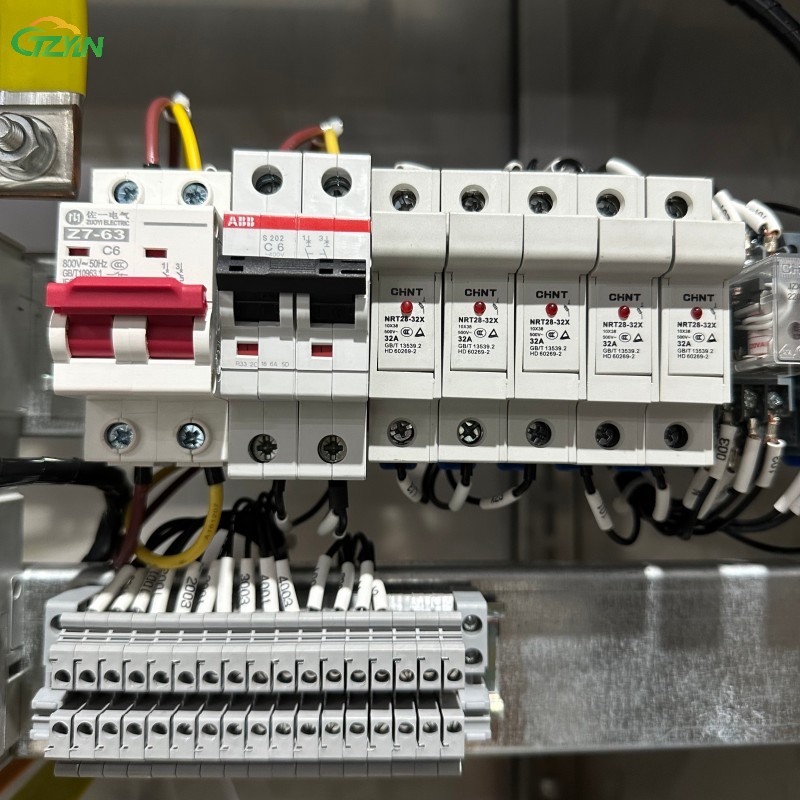

C. Solar PV Combiner Box / DC Distribution Panel (3 Units)

Working Principle: Consolidates multiple DC strings from the PV array onto heavy-duty T2 Copper Busbars. It uses Hall-effect sensors to monitor the current of each string and uploads data via RS485.

Core Function: High-efficiency Busbar Power Distribution with multi-channel DC fuses and surge protective devices (SPD) to prevent reverse current and lightning damage.

Appliation Scenario: Primary DC collection for centralized solar arrays in offshore or high-salinity environments.

Why Choose Our Island Solutions?

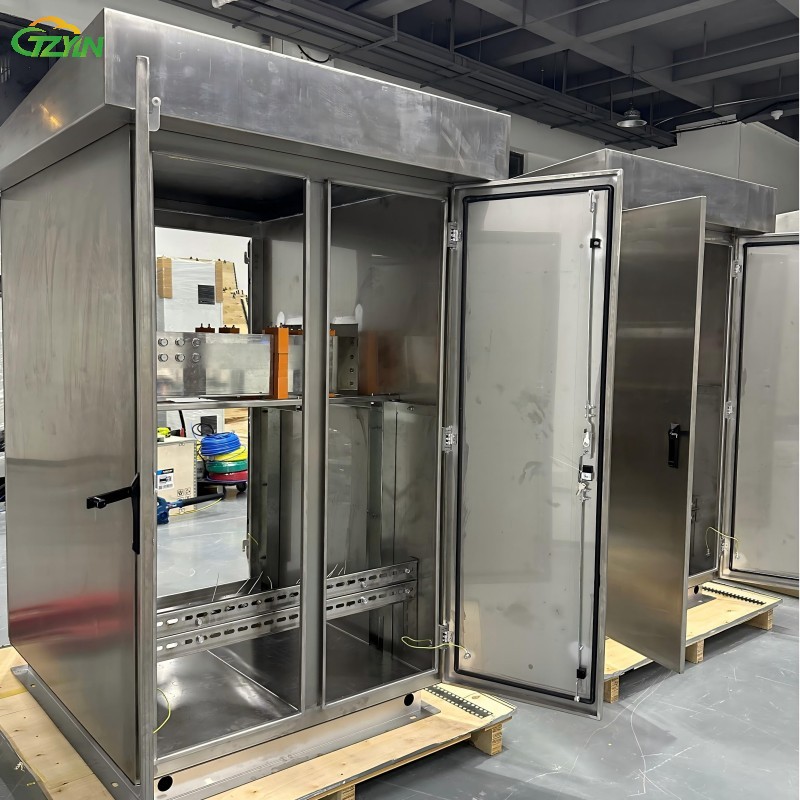

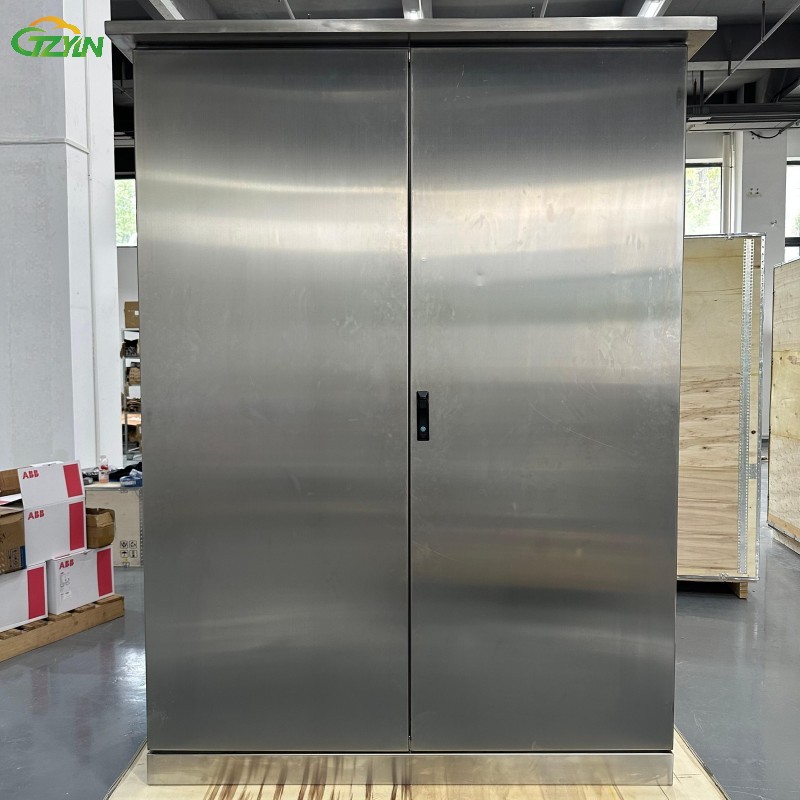

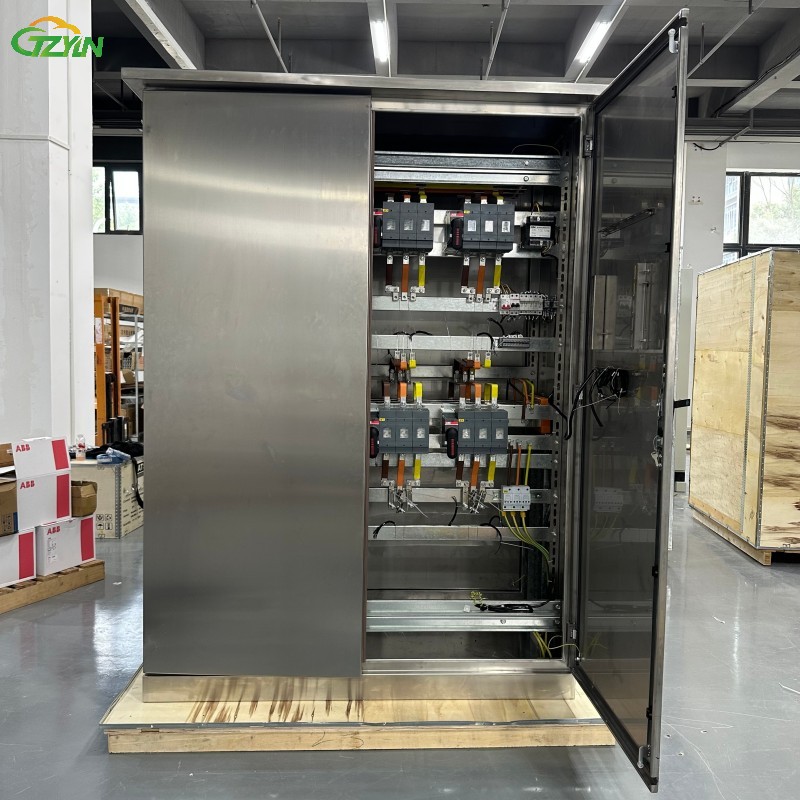

Salt Spray Resistant Switchboard: Every unit is housed in a premium Stainless Steel Electrical Enclosure (SS304/316L) with specialized anti-corrosion coatings. Rated IP65, these enclosures are built to withstand corrosive sea breezes for a 25-year service life.

Tier-1 Brand Integration: We utilize ABB and CHINT components to guarantee global reliability. For international buyers, this ensures easy access to spare parts and familiar maintenance protocols worldwide.

Smart Grid Adaptability: Specifically tuned for island grid stability, our protective relaying prevents voltage fluctuations from impacting local electrical infrastructure.

Moduar & Pre-wired Delivery: All units are factory-integrated and fully tested for "Plug-and-Play" deployment, significantly reducing on-site installation time and expensive labor costs in remote areas.

Technical Specifications

Specifications	Technical Details
System Classification	Offshore / Island Power System
Operating Voltage	DC 1000V/1500V \| AC 400V/690V \| 35kV
Enclosure Material	Stainless Steel Electrical Enclosure (Marine Grade)
Protection Rating	IP65 / NEMA 4X Equivalent
Core Components	ABB / CHINT / Schneider (Optional)
Metering Accuracy	0.2s Class (Revenue Grade / Utility Scale)
Standards Compliance	IEC 61439, IEC 62271, CE Certified

In conclusion, this Offshore / Island Power System represents the pinnacle of our engineering capabilities in extreme environments. By integrating 35kV High-Voltage Metering Switchgear, Grid-Tied AC Distribution Cabinets, and high-efficiency Solar PV Combiner Boxes, we have delivered a high-performance energy infrastructure that is built to last.

Our commitment to quality—utilizing Stainless Steel Electrical Enclosures and Tier-1 components like ABB and CHINT—ensures that this project remains a benchmark for Anti-Corrosion Solar Solutions and stable Microgrid Interconnection. We don't just supply equipment; we provide peace of mind for energy investors in the world's most challenging locations.

Looking for a Reliable Solar Partner for Your Island Project? Whether you are developing a Remote Area Power Supply (RAPS) or a large-scale offshore solar farm, our team is ready to provide modular, pre-wired, and fully certified electrical solutions tailored to your specific grid requirements.

Get a Free Technical Consultation
